Real-Life Charging Scenarios
How does it work?
Certified Multi-Level Safety
Overcurrent Protection

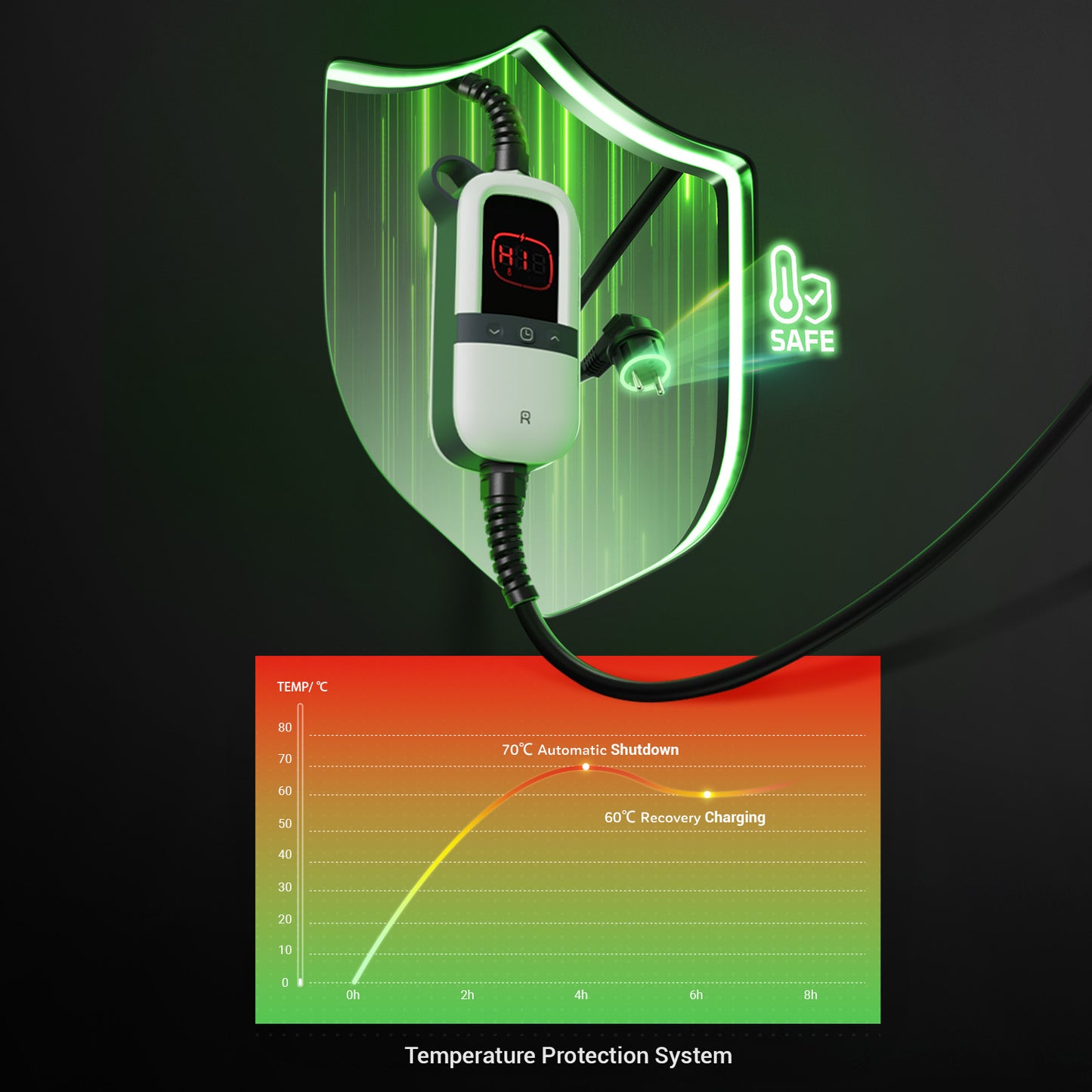

Overheat Protection
Current Leakage Protection
Over/Under Voltage Protection
Short Circuit Protection
Ground Fault Protection
Overcurrent Protection
Overheat Protection
Current Leakage Protection
Over/Under Voltage Protection
Short Circuit Protection
Ground Fault Protection

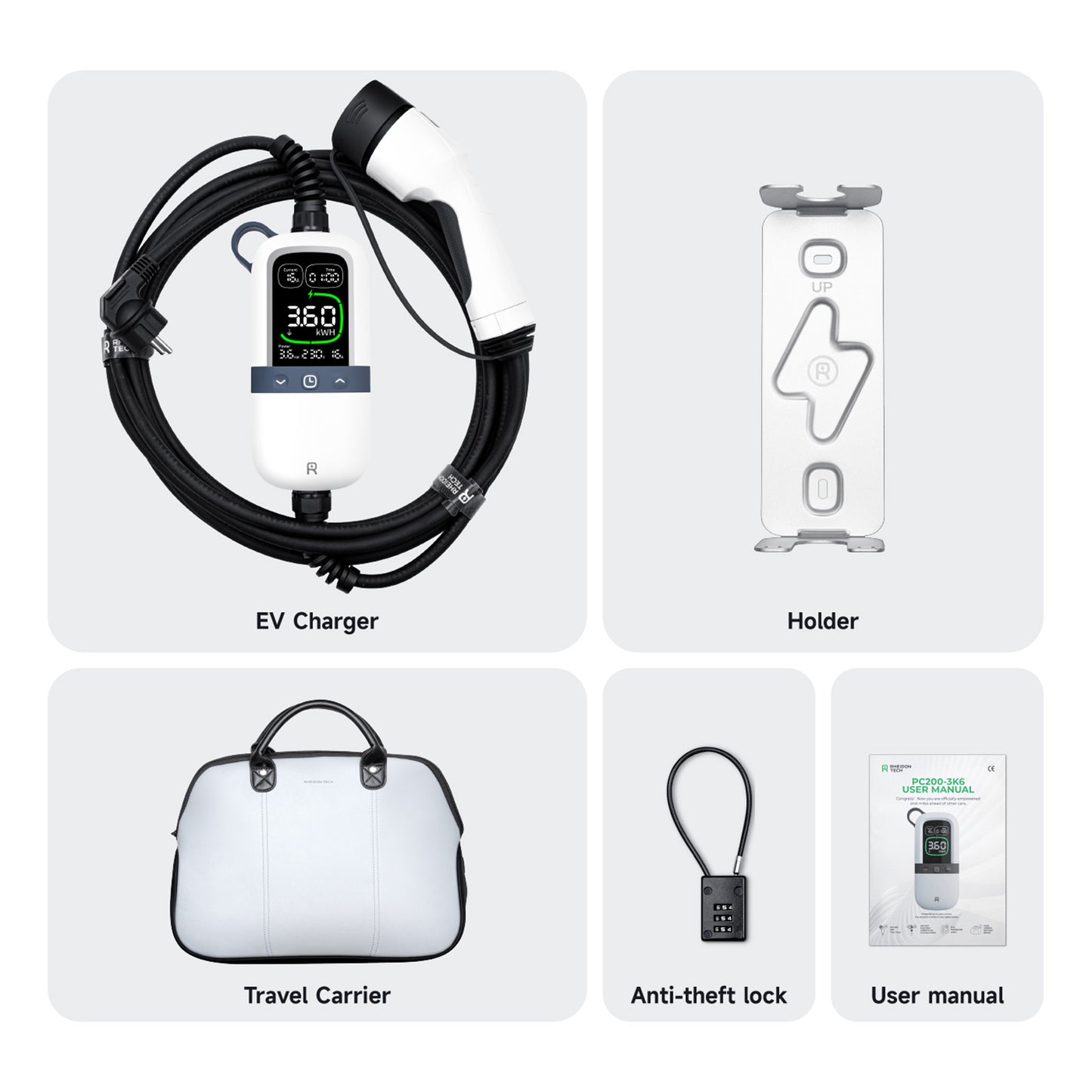

Whats in the box

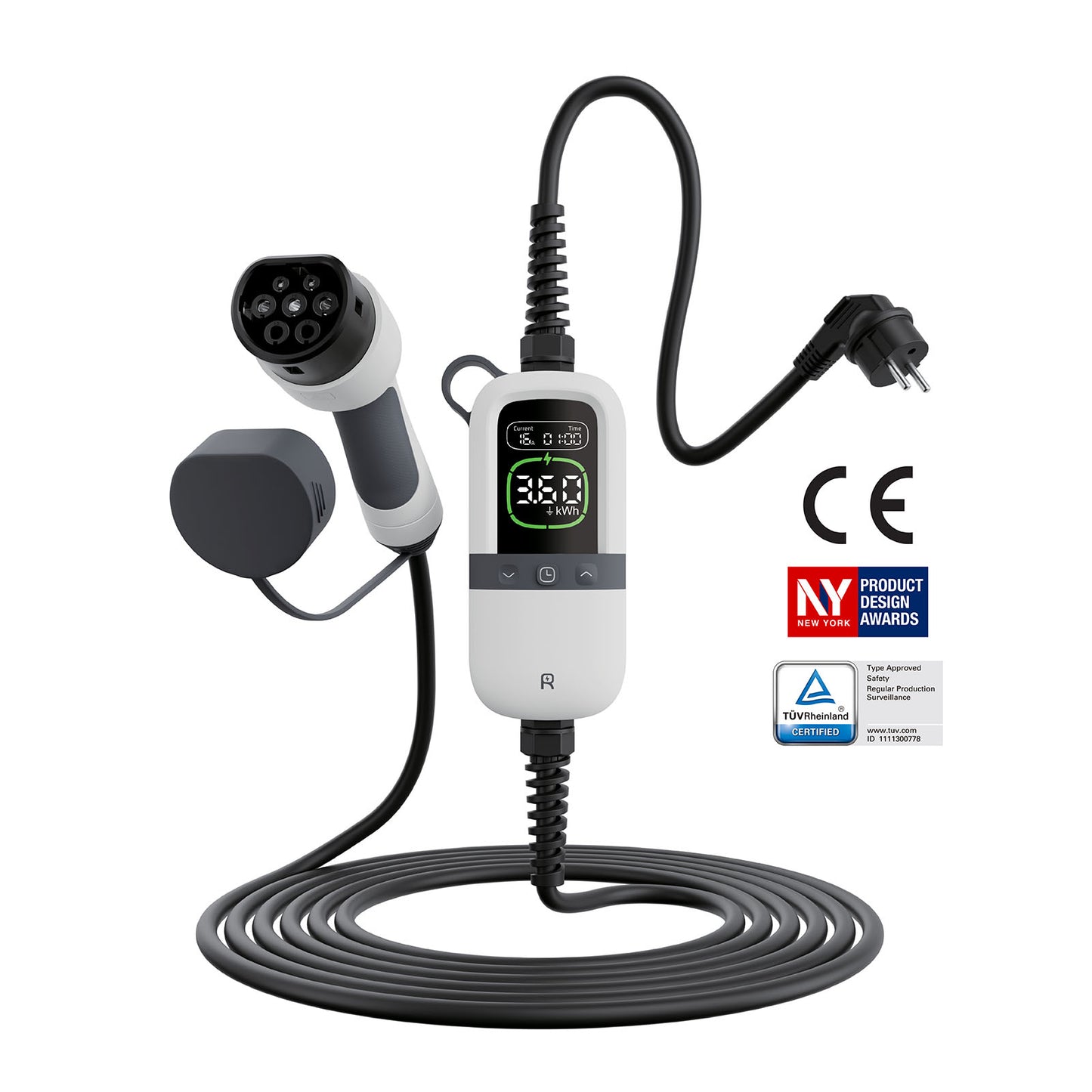

PC200-3K6 SPECIFICATION
Charging Power (Max)
3.6kW
Input
230V (6, 8, 10, 13, 16A Manually Adjustable)

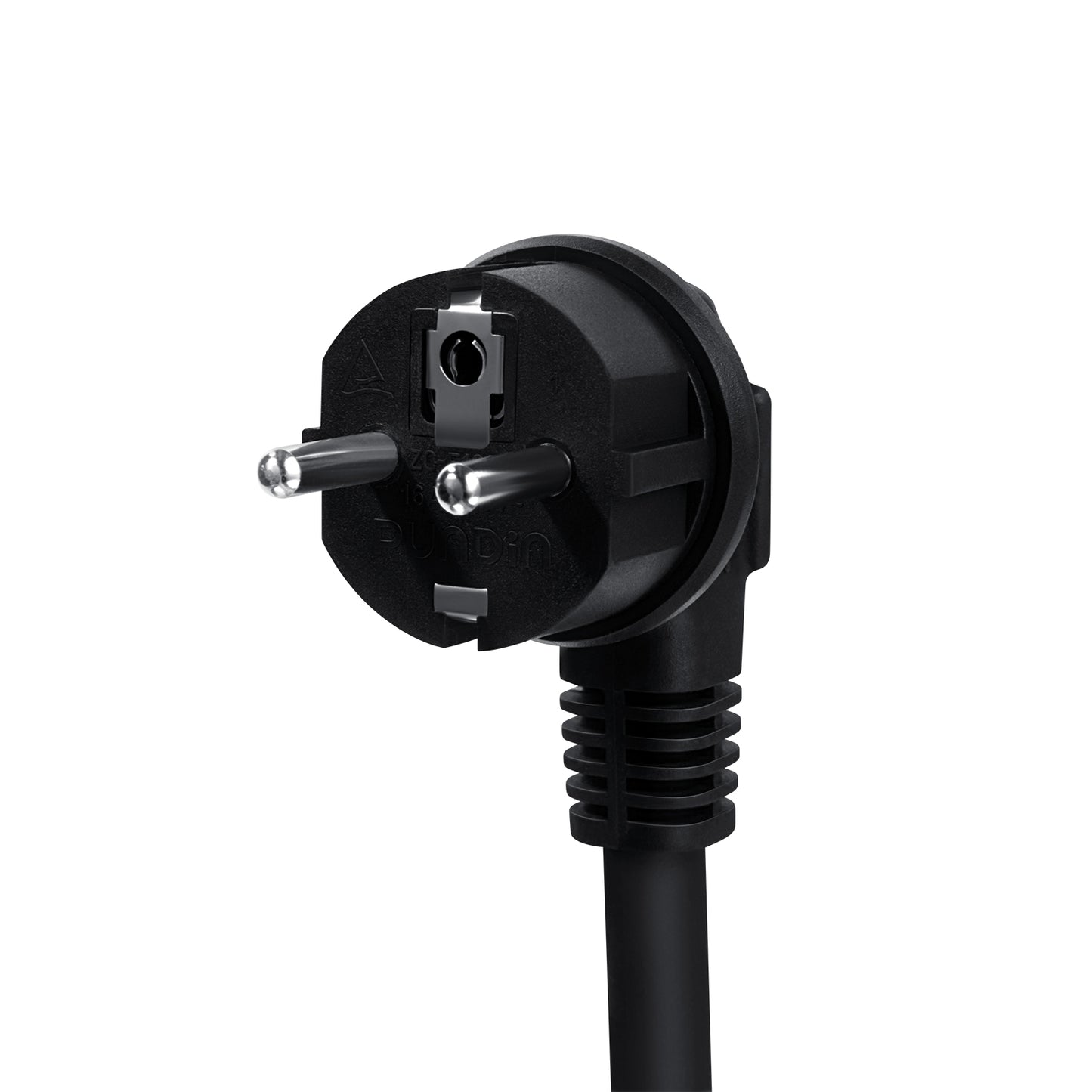

Power Plug
Schuko IP44
Connector
Type 2
Warranty
2 Years
Cable Length
7.5m
Operating Temperature
-30°C to +50°C
Charger Size
200 x 90 x 67mm
Weight
4kg

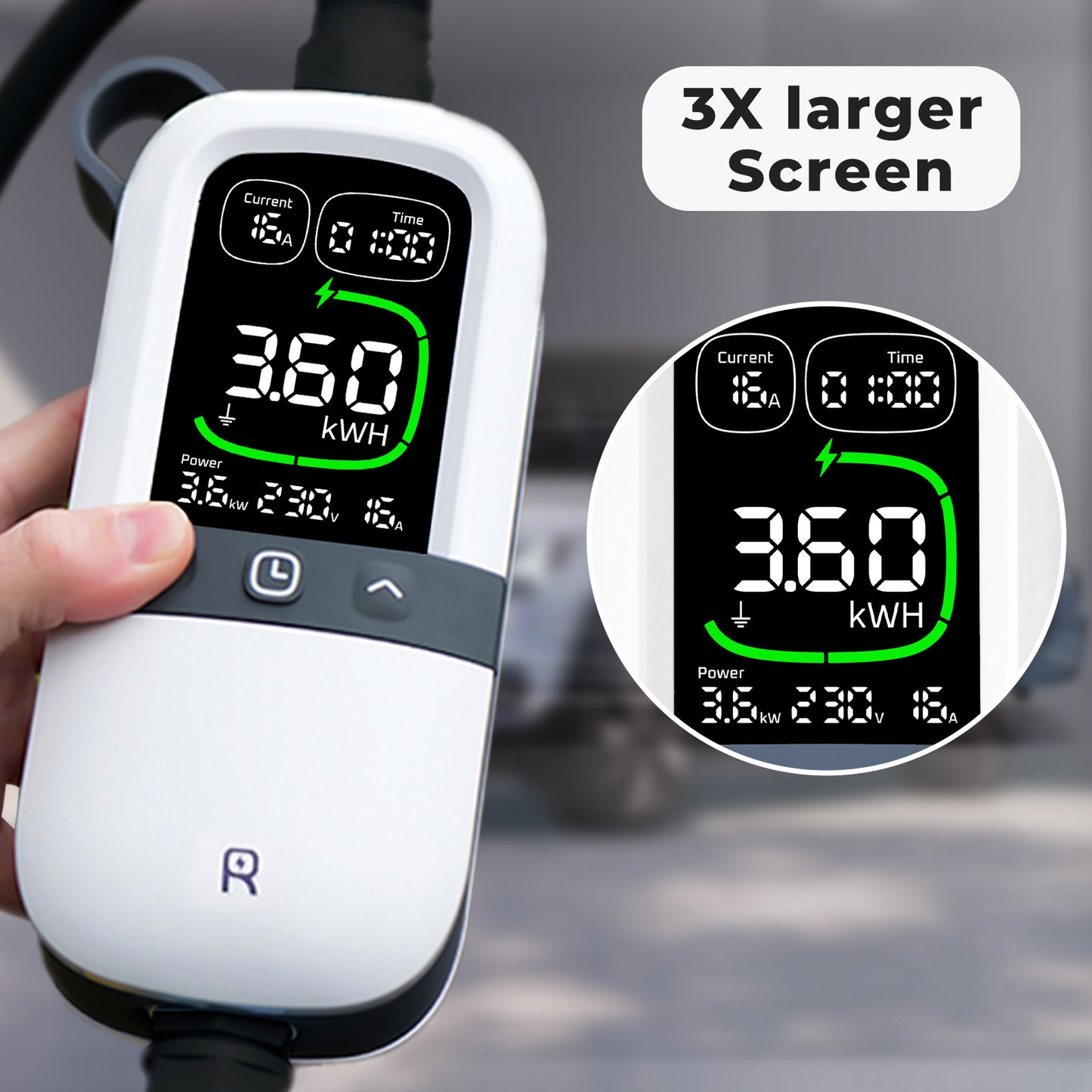

Screen
3.5 inches
Cable Color
Black
Keying
Mechanical Button
Storage Temperature
-30°C to +60°C
Operating Humidity
5% to 95%
Altitude Limit
< 3000m
Housing
Strengthen PC
Waterproof
IP65
Residual Current Device
Type A + DC 6 mA With Protective Conductor Monitoring
Standard
EN IEC 62752:2016+A1
EN IEC 61851
EN IEC 61000-6-1:2019
EN IEC 61000-6-3:2021
EN IEC 62196, RoHS
EN IEC 61851
EN IEC 61000-6-1:2019
EN IEC 61000-6-3:2021
EN IEC 62196, RoHS
Safety Protection
Leakage Protection
Grounding Protection
Over Current Protection
Anti-Thunder Protection
Over Temperature Protection

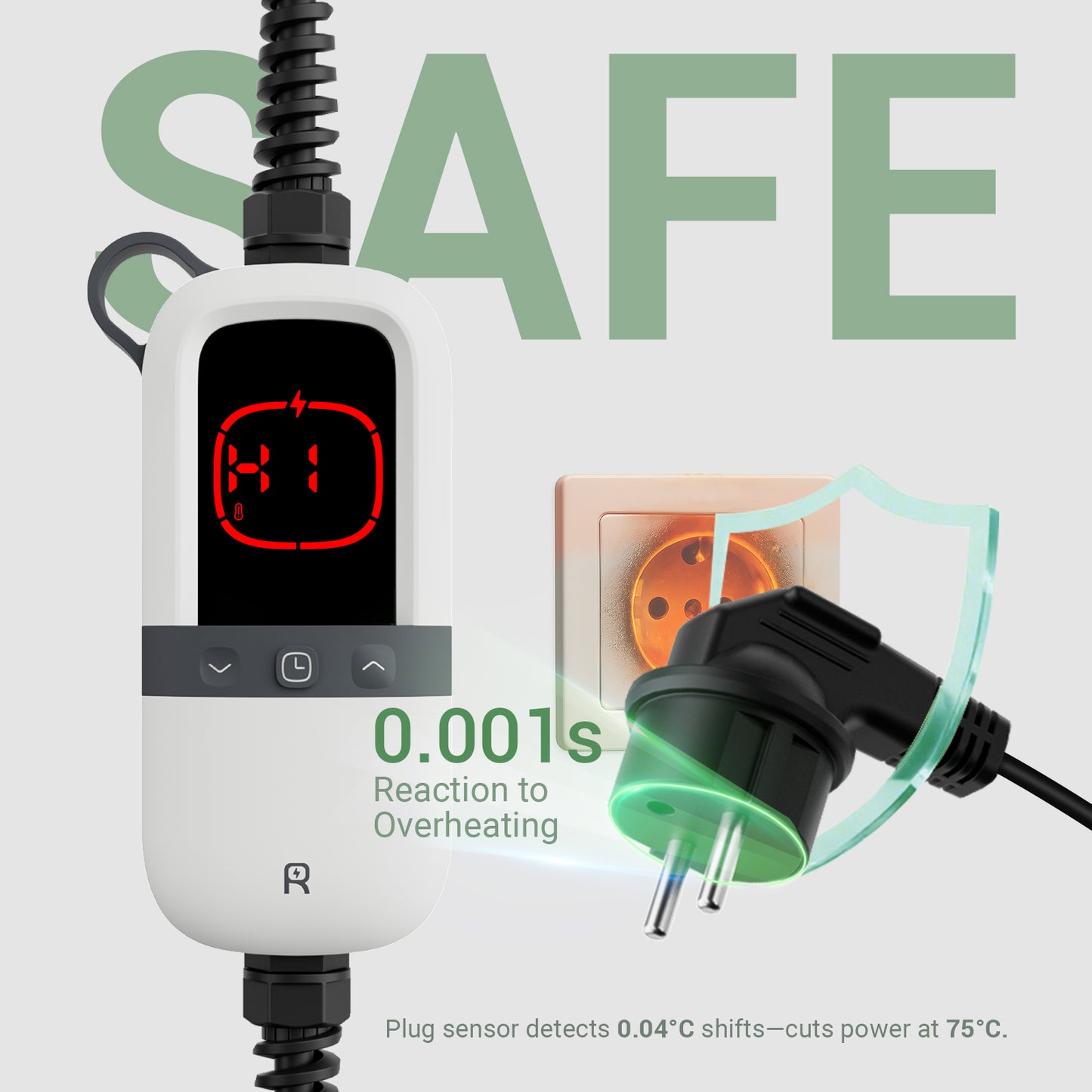

Plug Temperature Protection
Short Circuit Protection
Low Voltage Protection
High Voltage Protection
Grounding Protection
Over Current Protection
Anti-Thunder Protection
Over Temperature Protection
Plug Temperature Protection
Short Circuit Protection
Low Voltage Protection
High Voltage Protection
FAQs

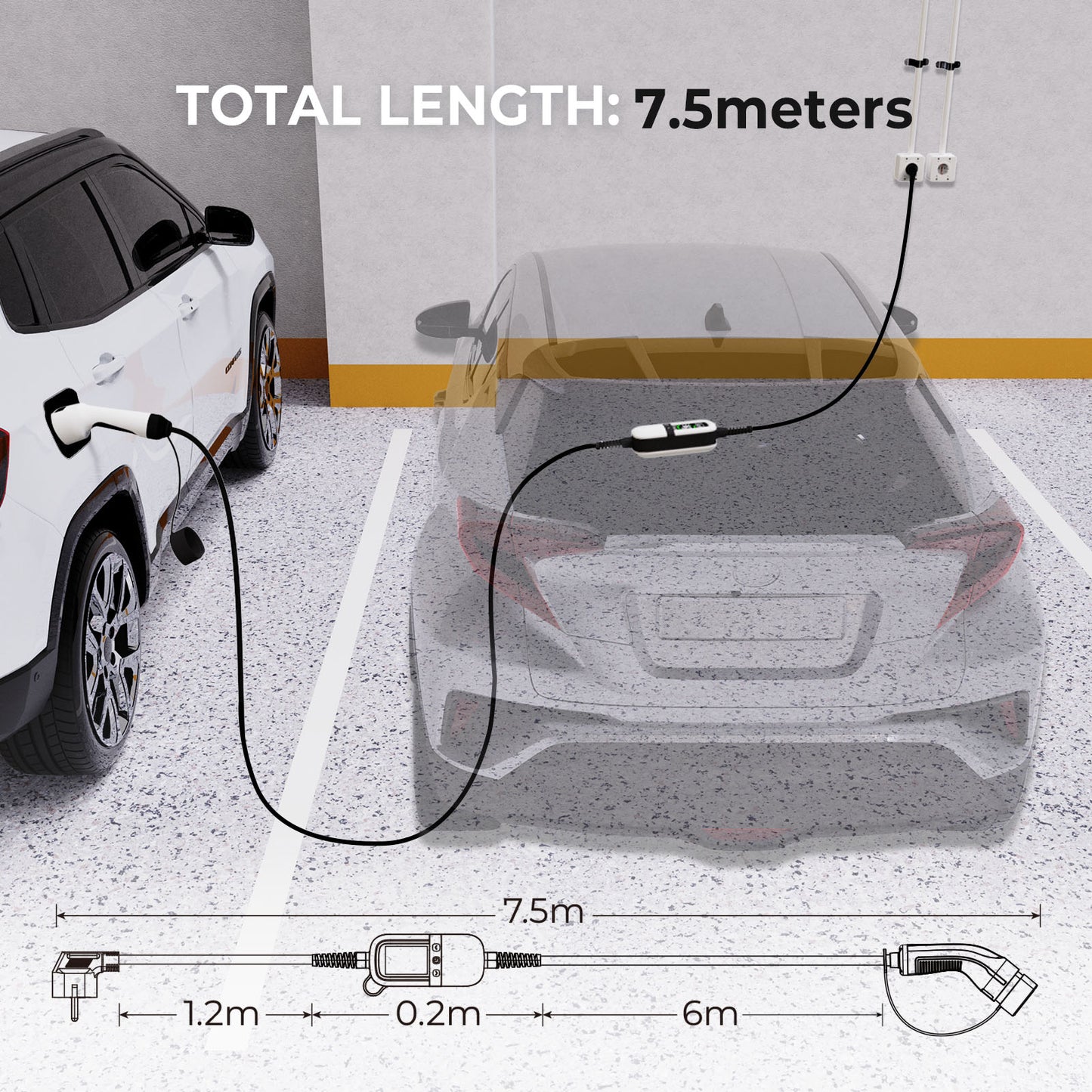

About the cable – exactly how long is it?
The input cable is 1.2 meters and the output cable is 6 meters.
Including the charger body, the total length is approximately 7.5 meters.
Is the PC200 compatible with my car?
The PC200 features a Type 2 connector, which is the standard for EVs across Europe.
We haven't encountered compatibility issues with Type-2 EVs.
If you're unsure, feel free to contact us — we're happy to help!
Does the Rheidon PC200 require installation?
No installation is needed.
The PC200 is plug-and-play with a Schuko plug compatible with most European sockets.
