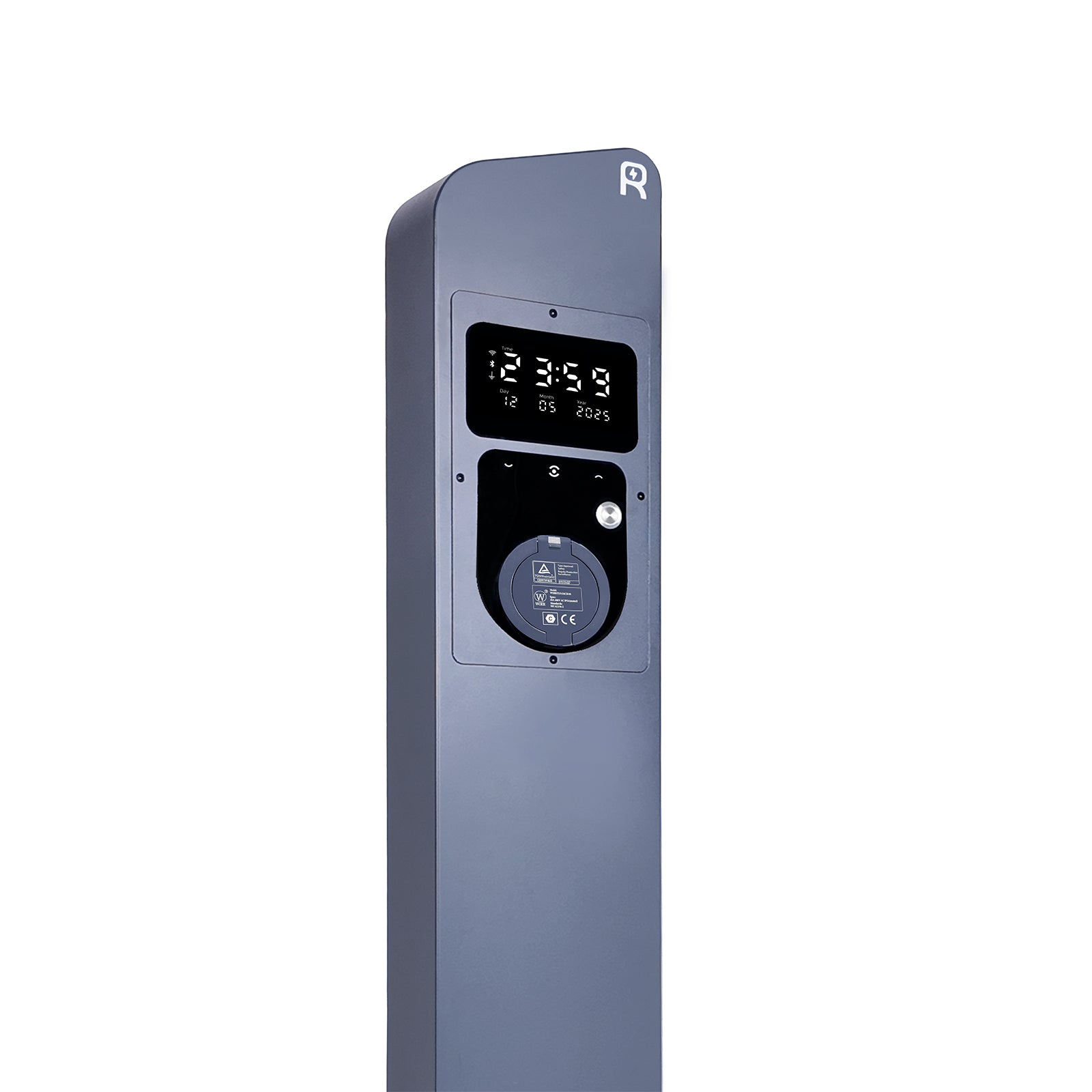

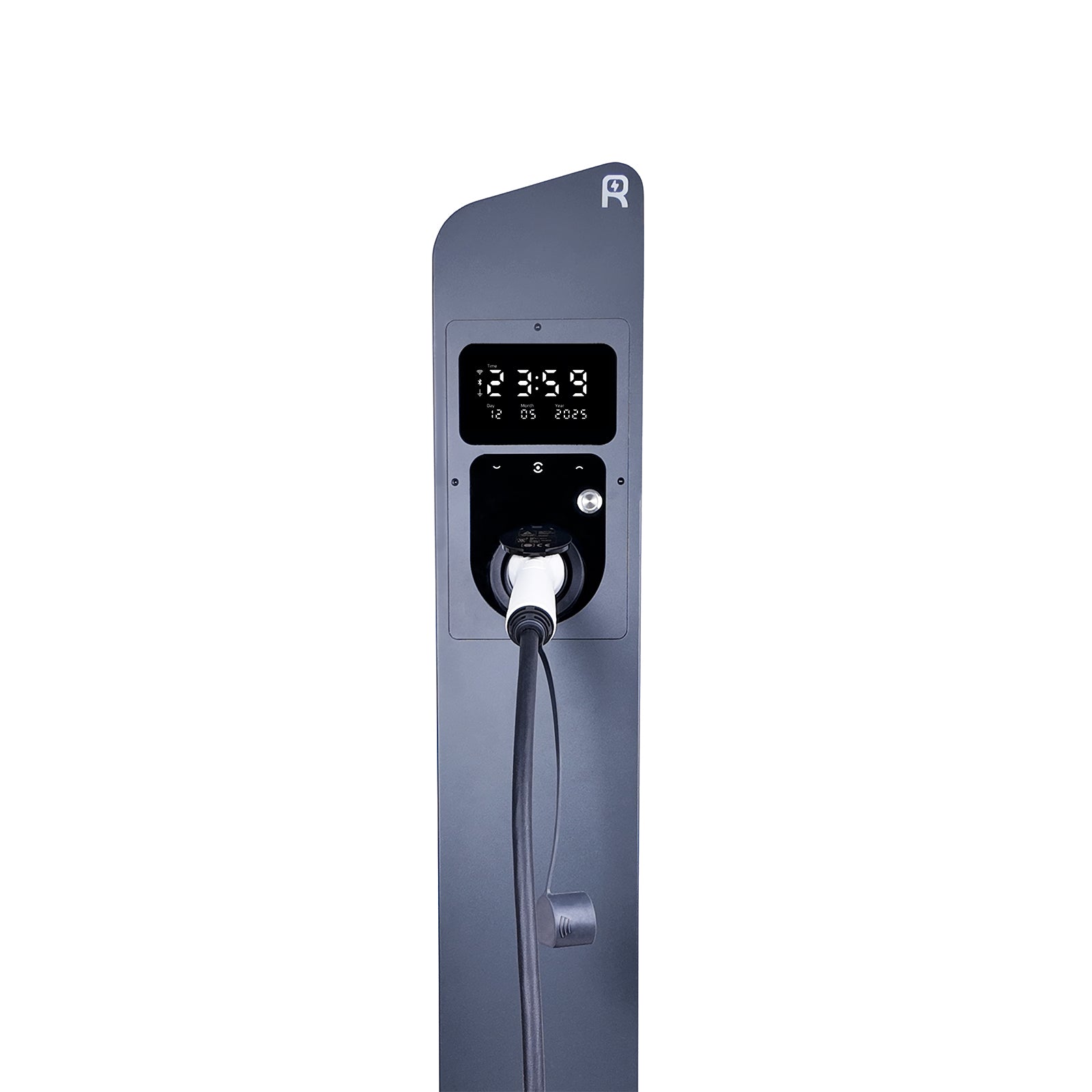

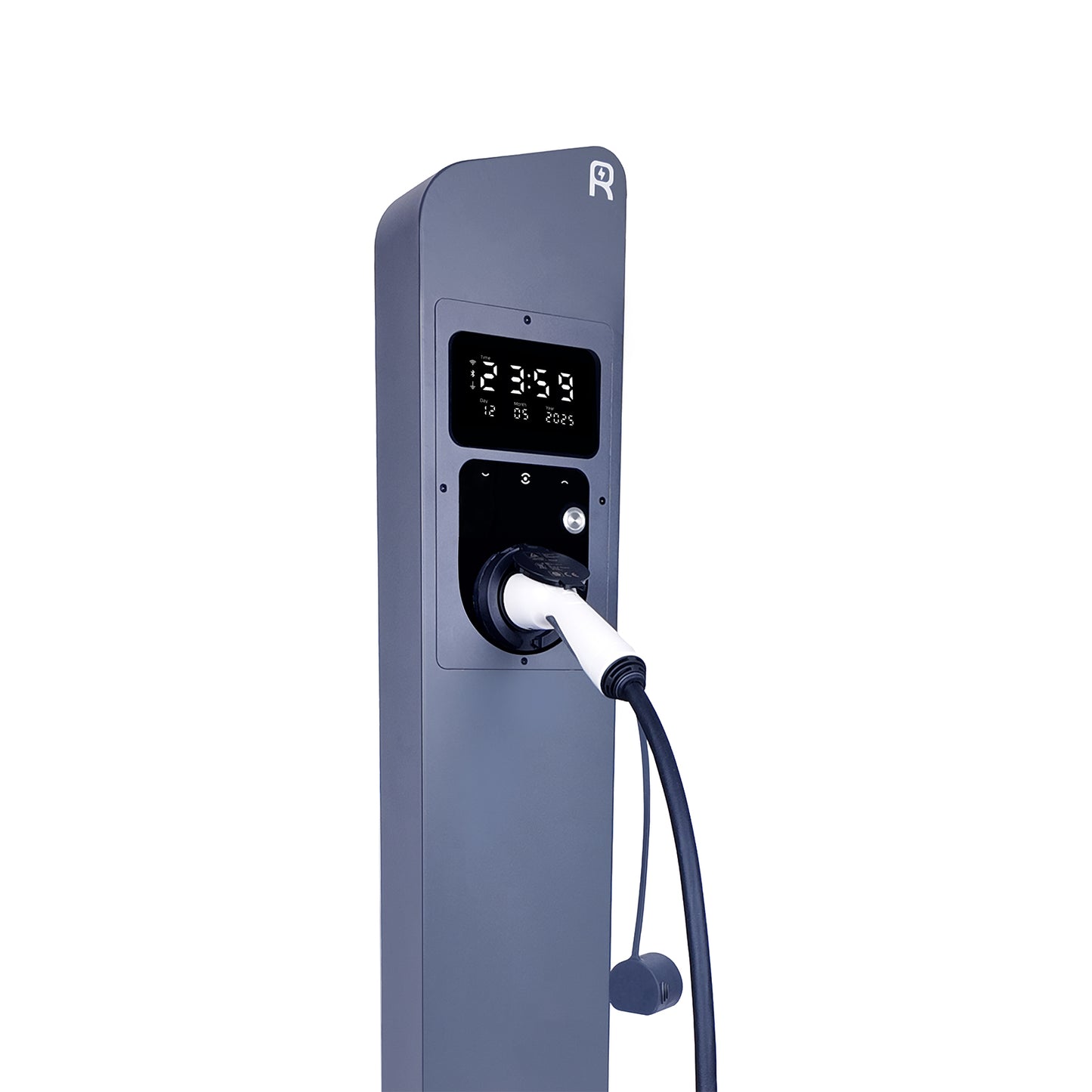

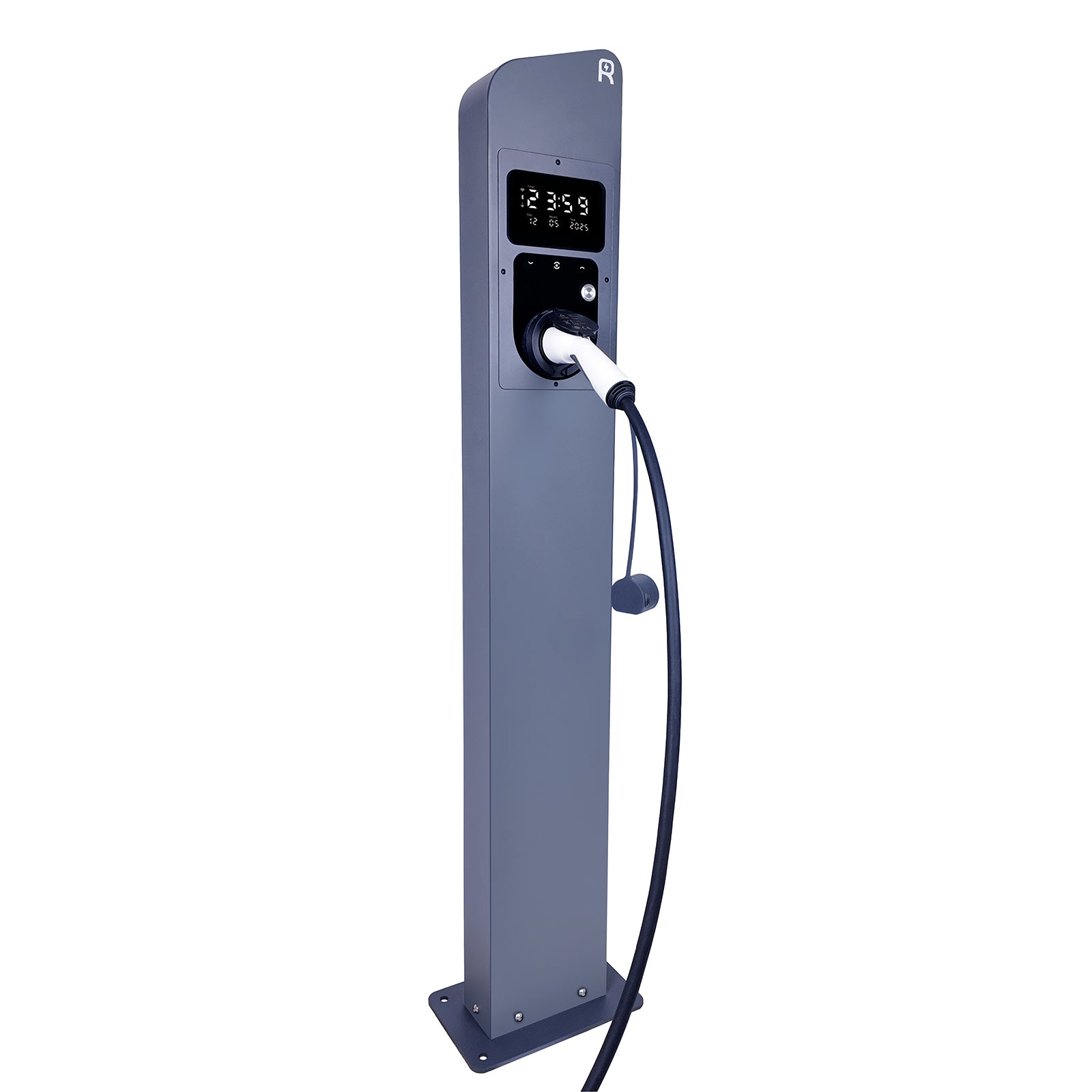

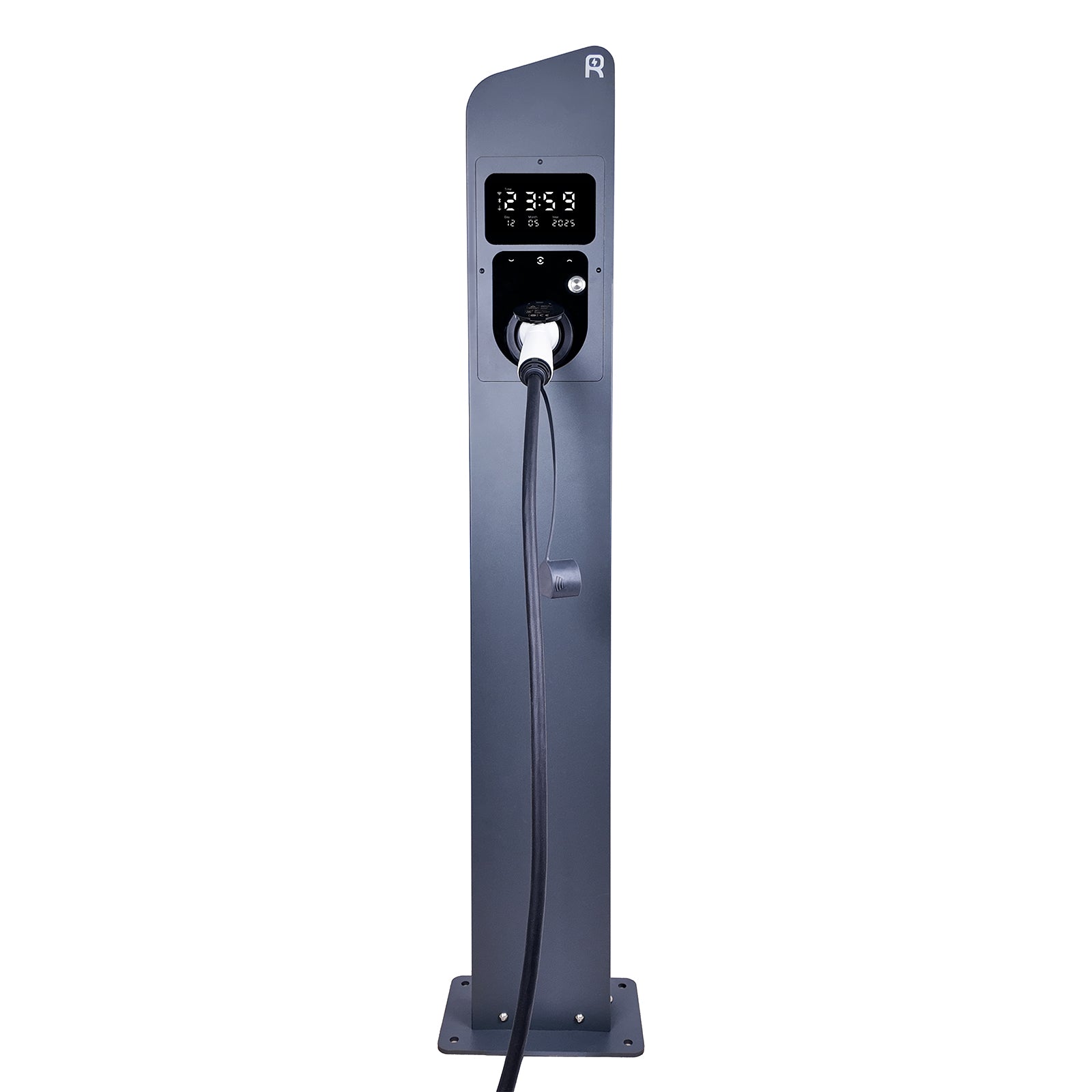

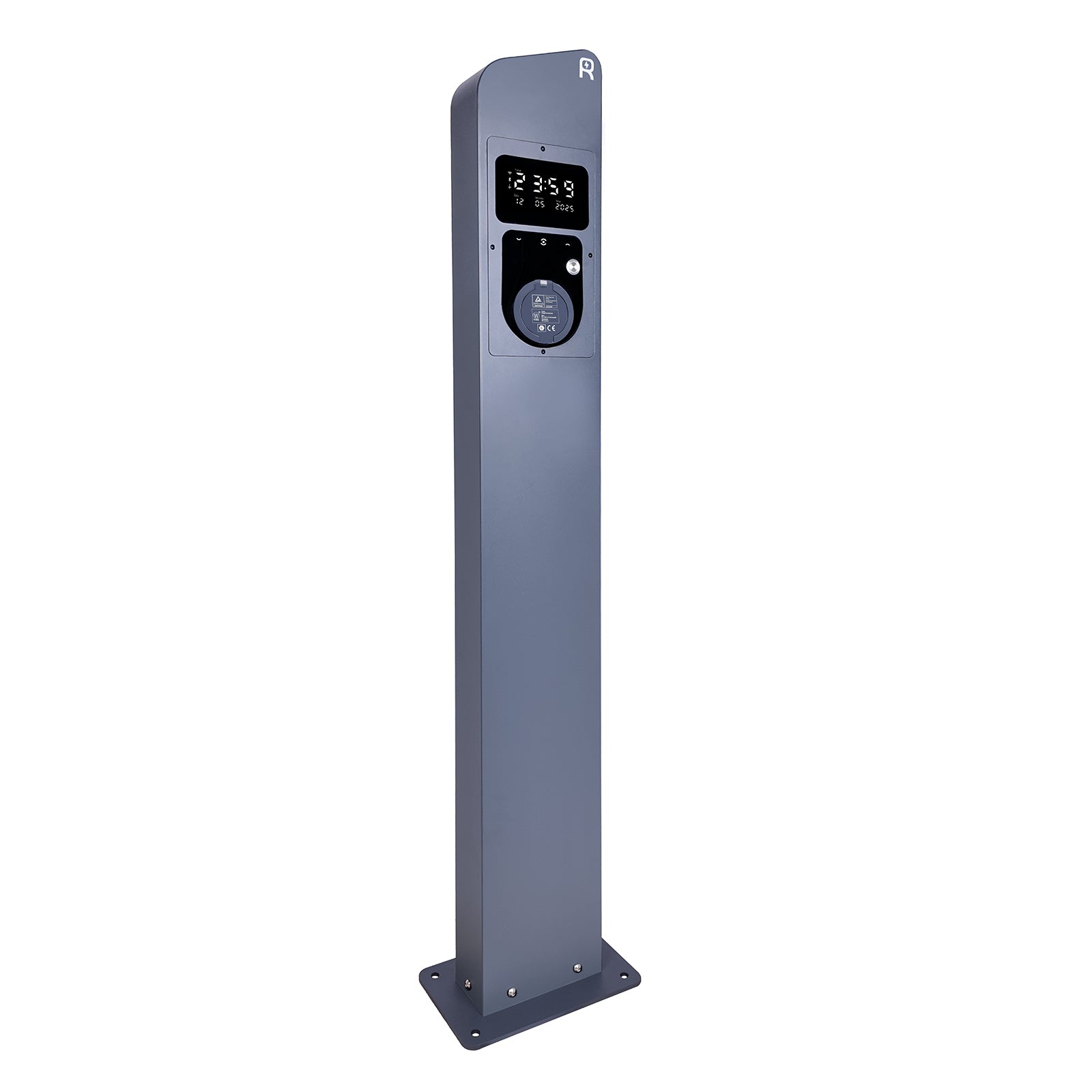

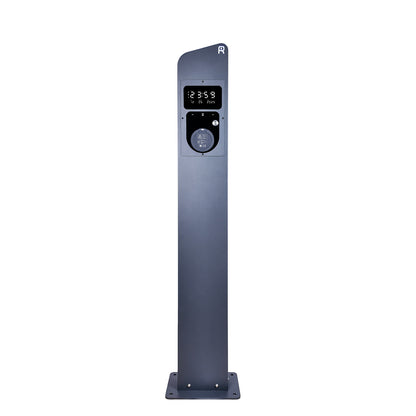

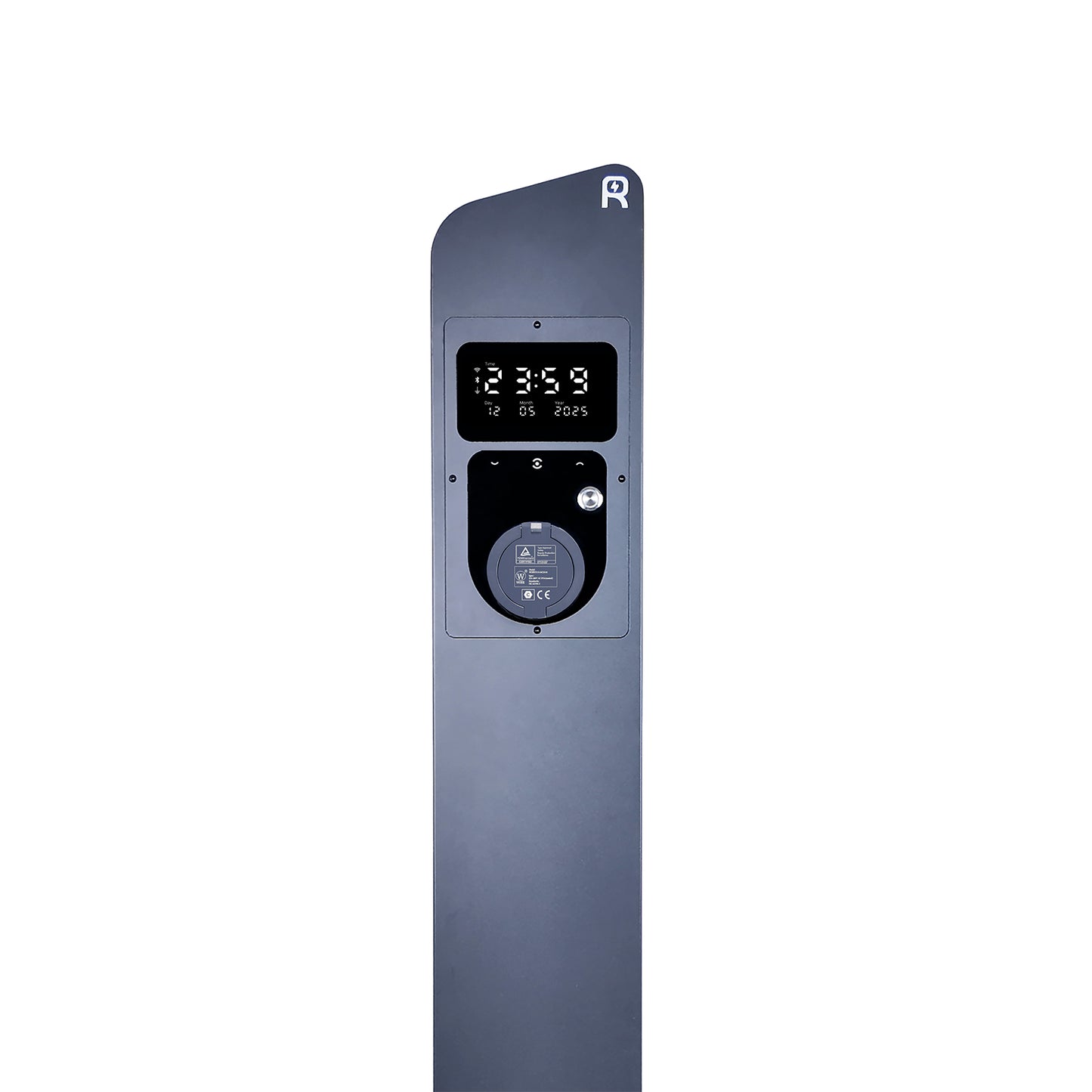

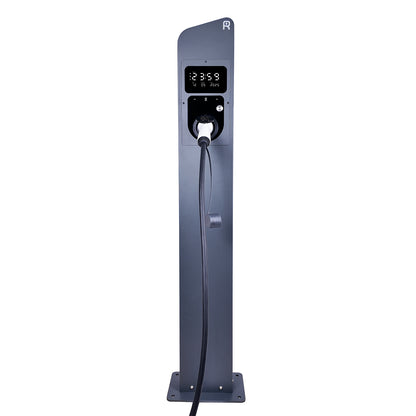

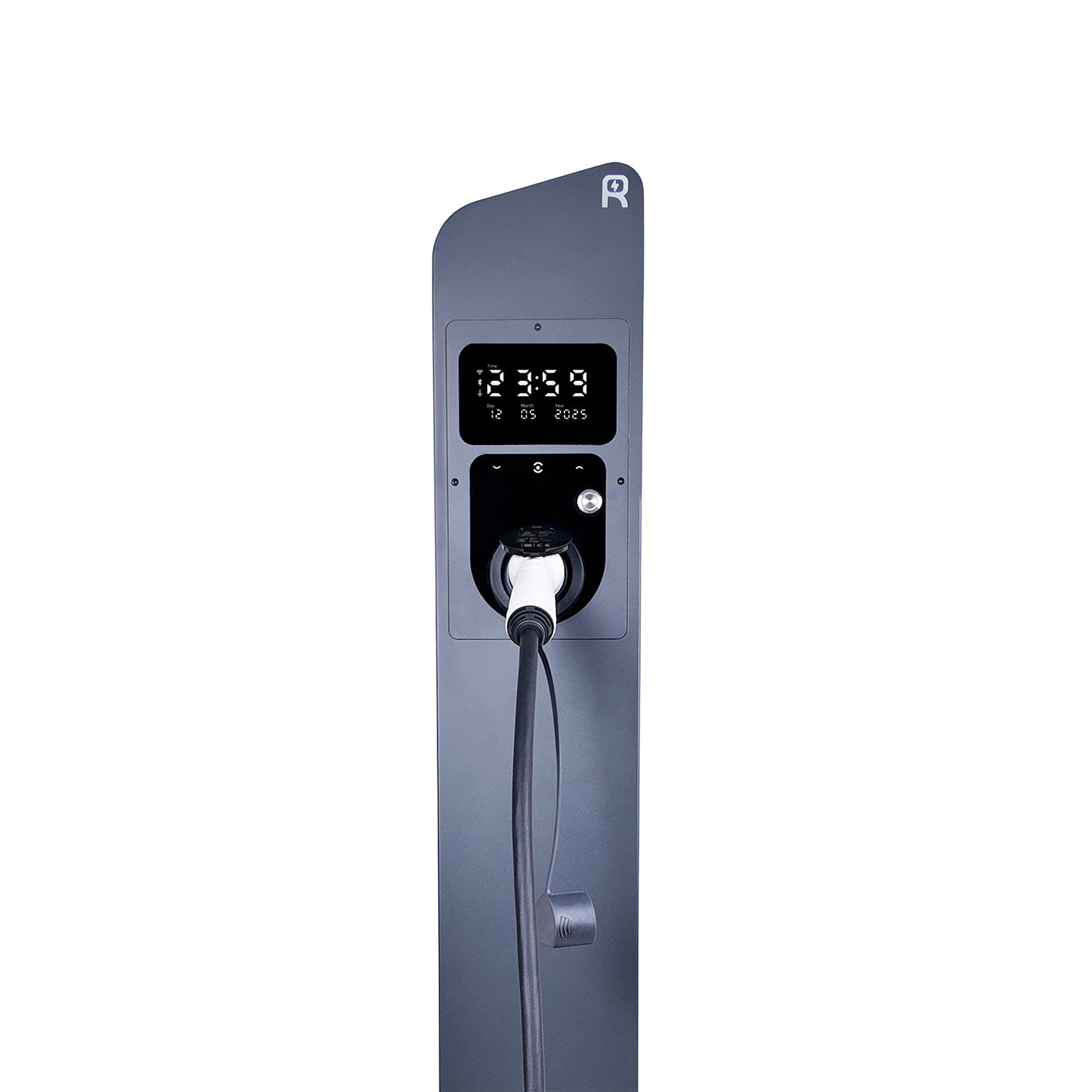

Rheidon HC720-22K Home Charger
Rheidon HC720-22K Home Charger
-
Lightning-Fast 22kW Charging: Get you back to your day quickly and efficiently.
-
Intuitive Operation: The large screen and responsive touch bottons make charging setup and monitoring effortless.
-
Smart Access Control: Secure your charging with convenient RFID authorization or seamless app management.
-
APP Support: Control and monitor your charging remotely with the intuitive Rheidon+ App.
- Minimalist Design Excellence: A sleek aesthetic that perfectly complements your EV and outdoor space.
Regular price
€999,00 EUR
Regular price
Sale price
€999,00 EUR
Unit price
per
Taxes included.
The order will be shipped within 15–20 business days.
View Technical SpecificationsCouldn't load pickup availability
If you have any questions about compatibility, installation, shipping, or anything else, you can contact us via the chatbot or by emailing support@rheidon.com we’re always here to help!

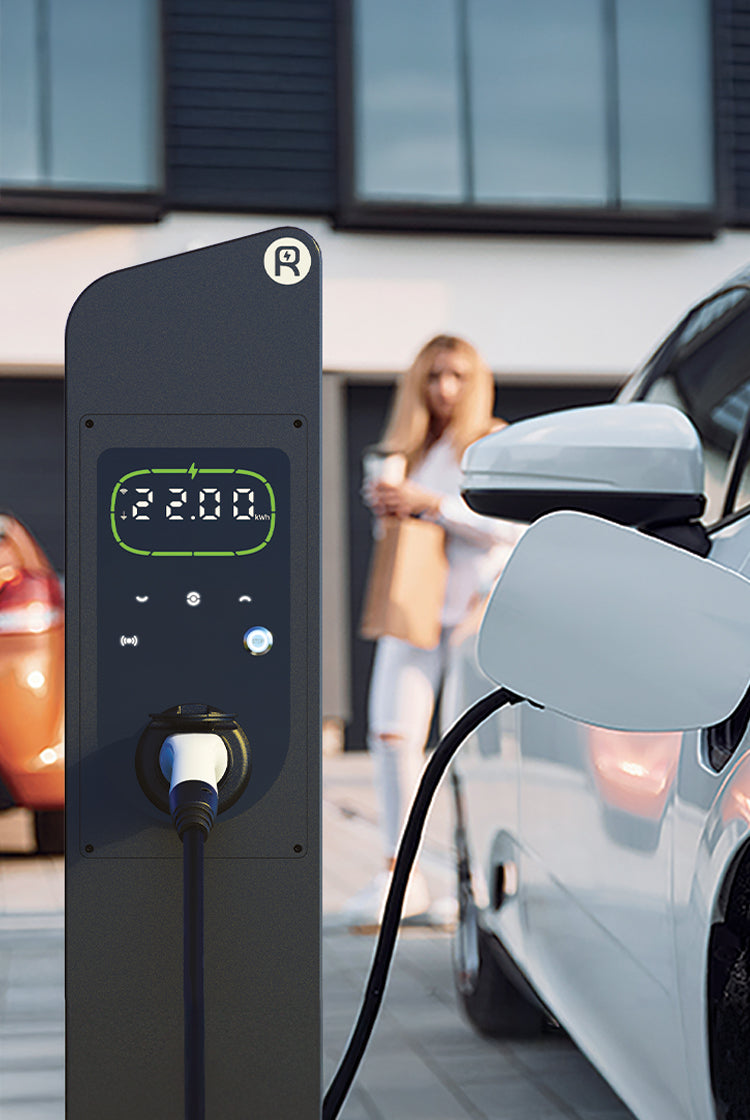

Charge 10x Faster
Boost your EV with up to 22 kW—lightning-fast compared to a regular household plug.

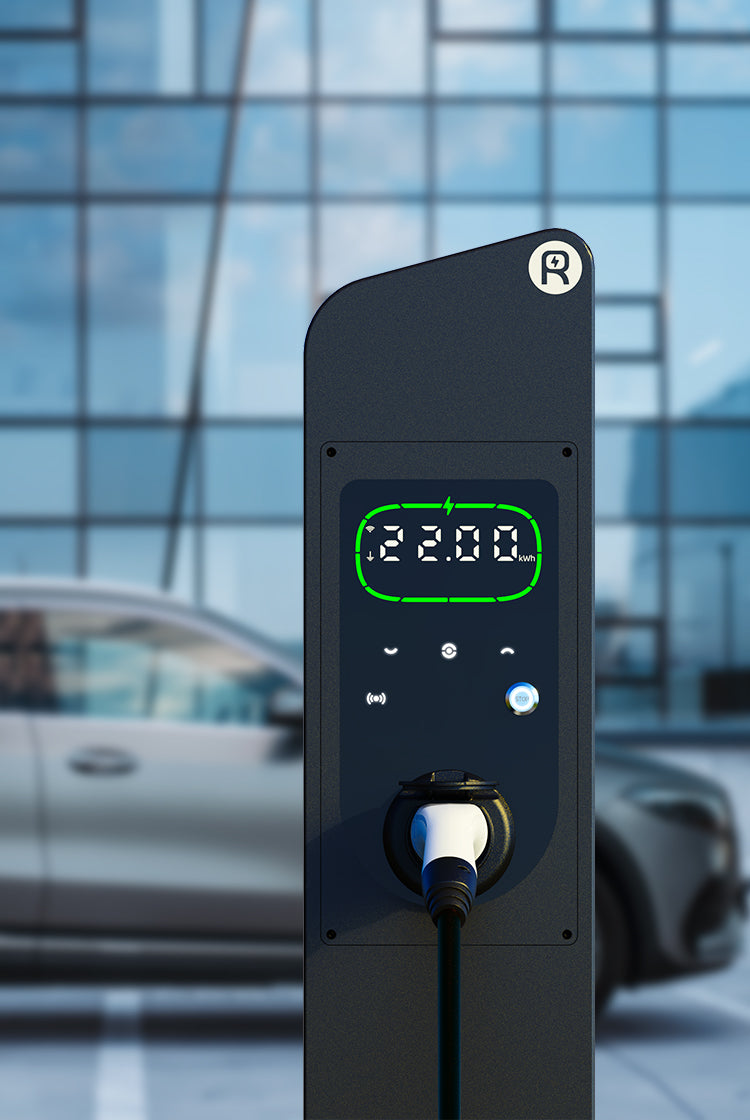

Style Meets Power
A sleek design that blends perfectly into your garden, driveway, or workplace.

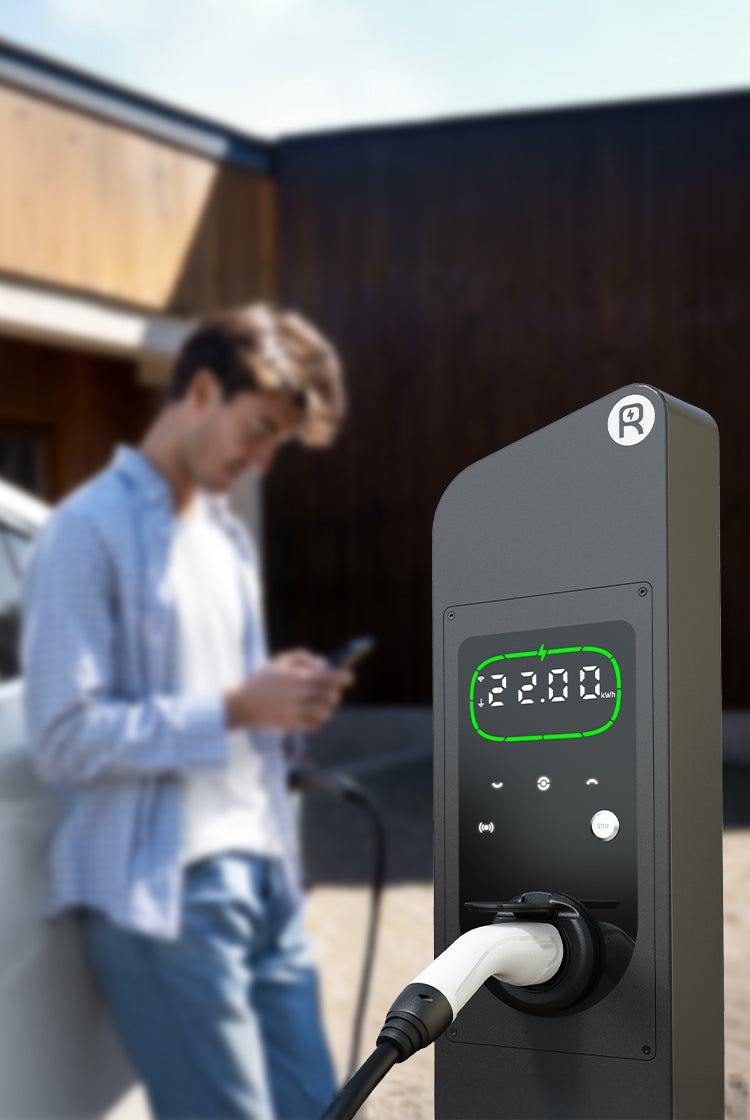

Smart at a Touch
Control it instantly with the big screen and touch buttons—or go next level with the Rheidon+ App.
← Swipe to see more →
HC720-22K Specification
HC720-22K SPECIFICATION
Charging Power (Max)
22kW
Power Plug
CEE32 400V 32A 3-phase (Cable end treatment optional)
Input
400V / 6 - 32A Manually Adjustable
Cable Color
Black
Weight
32kg
HARDWARE & INSTALLATION
Charger Size
200 x 320 x 1500mm
Connector
Type 2 Charging Port
Charging Cable Len.
Additional cable needed
Input Cable Len.
1.8m
Input Cable Specification
For AC charging (Mode 3, IEC 61851-1), rated 450/750 V
Housing Material
Galvanized Steel Sheet / High-Quality Powder Coated

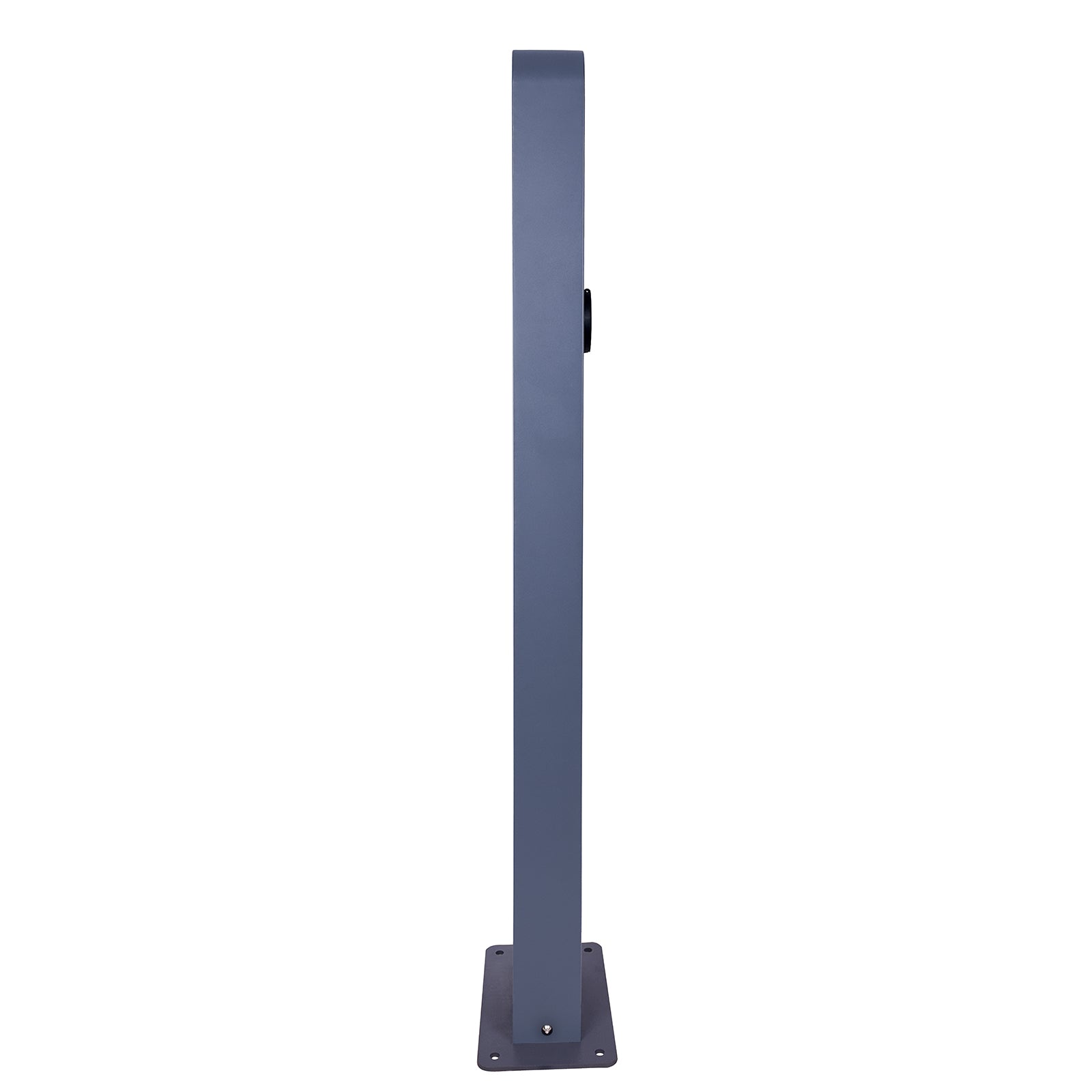

Installation
Flanged Mounting
Function Support
AC500 : Smart Load Balancer
OPERATION & ACCESS
Operation Panel
Touch Button
Screen
7 inches
Charger Control Method
On-device / Remote via APP
Charging Access Method
RFID Authorization / Wi-Fi Enabled APP
COMMUNICATION MODULES
Wi-Fi Module
802.11b/g/n 2,4GHz / frequency band 2412-2472Mhz
RFID Module
13.56 MHz
SYSTEM STATUS & ENVIRONMENT
Status Display
5W (Max)
Standby Power
5W (all lights standby mode) to 18W (all lights fully loaded)
Op. RH
5% to 95%
Op. Temp.
-30°C to +50°C
Stg. Temp.
-40°C to +60°C
Altitude Limit
< 3000m
SAFETY & COMPLIANCE
RCD (Residual current device)
Type A + DC 6 mA with Protective Conductor Monitoring
Standard
EN IEC 61000-6-1:2019
EN IEC 61000-6-3:2021
EN IEC 61851 / EN IEC 62196 / RoHS
EN IEC 61000-6-3:2021
EN IEC 61851 / EN IEC 62196 / RoHS
Safety Protection
Over Current Prot. / Grounding Prot. / Anti-Thunder Prot.
Low Voltage Prot. / High Voltage Prot. / Short Circuit Prot.
Over Temperature Prot. / Leakage Prot. / Plug Temperature Prot. (Optional)
Stop Button / Charging Cable Locking Device
Low Voltage Prot. / High Voltage Prot. / Short Circuit Prot.
Over Temperature Prot. / Leakage Prot. / Plug Temperature Prot. (Optional)
Stop Button / Charging Cable Locking Device
Waterproof / Impact Resistance
Main Unit: IP65 & IK10
Warranty
2 Years
