Rheidon PC200 Pro-7K4 | Portable EV Charger – Universal Plug Compatibility

The PC200 Pro-7K4 supports single-phase charging up to 7.4 kW (230 V / 32 A), while the PC200 Pro-11K delivers up to 11 kW on three-phase power (400 V / 16 A) and up to 3.6 kW on single-phase power.

The PC200 Pro-7K4 reaches its full 7.4 kW output with a single-phase 230 V / 32 A supply. It can also be used with compatible lower-current sockets via a Quick-Switch adapter, with charging power automatically limited by the socket and adapter used.

No installation is required if you already have a suitable socket. For sustained 7.4 kW charging from a 32 A socket, we recommend having a qualified electrician check that the socket, circuit and wiring are suitable.

No. The PC200 Pro-7K4 and PC200 Pro-11K use their own dedicated adapter ranges. Adapters are not interchangeable between the two models.

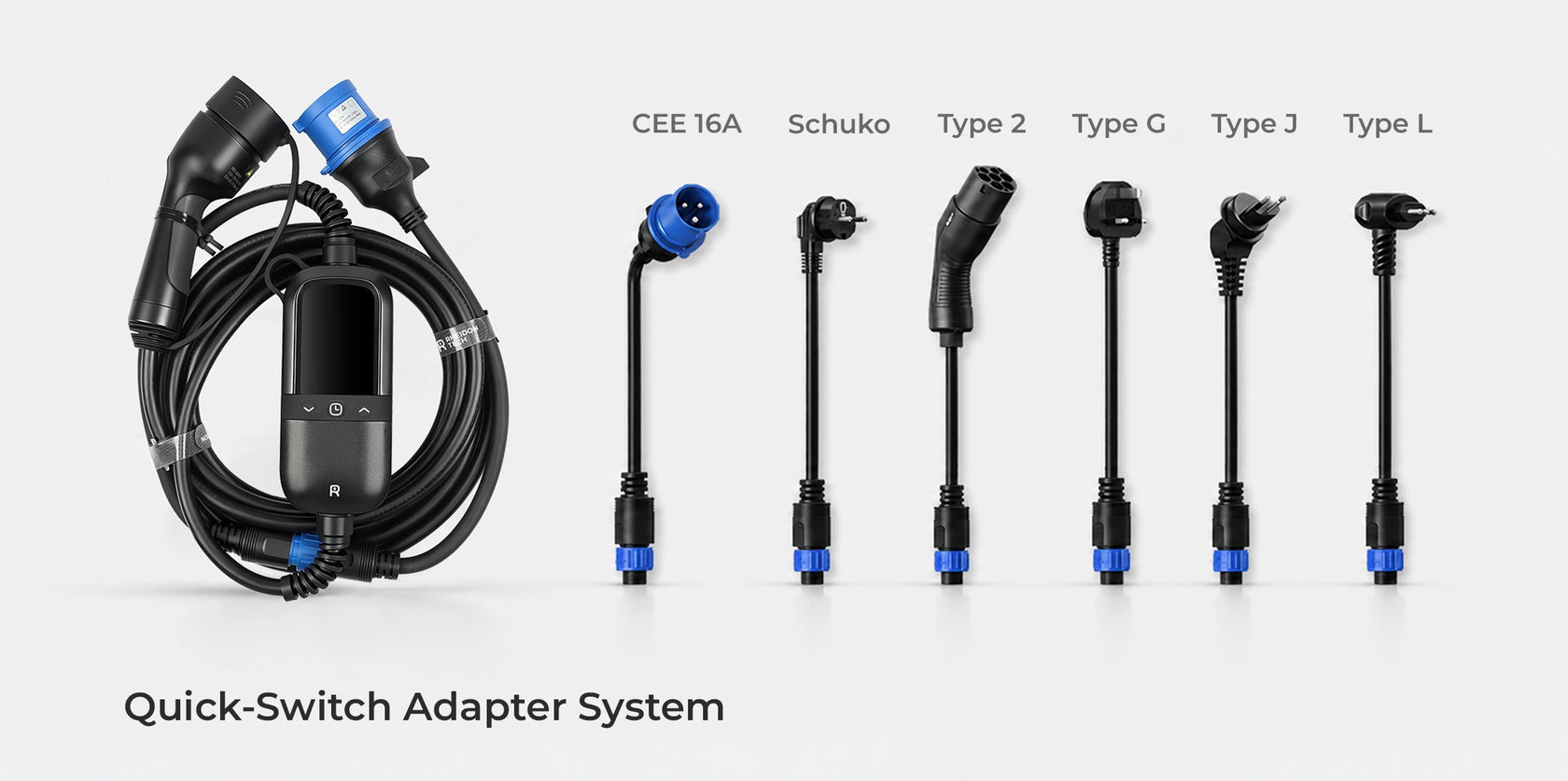

With the appropriate Quick-Switch adapter, the PC200 Pro-7K4 supports CEE 32A 3-pin, Schuko (Type E/F), Type G, Type J, Type L, CEE Blue and Type 2 connections. The CEE 32A 3-pin adapter is included; other adapters are sold separately.

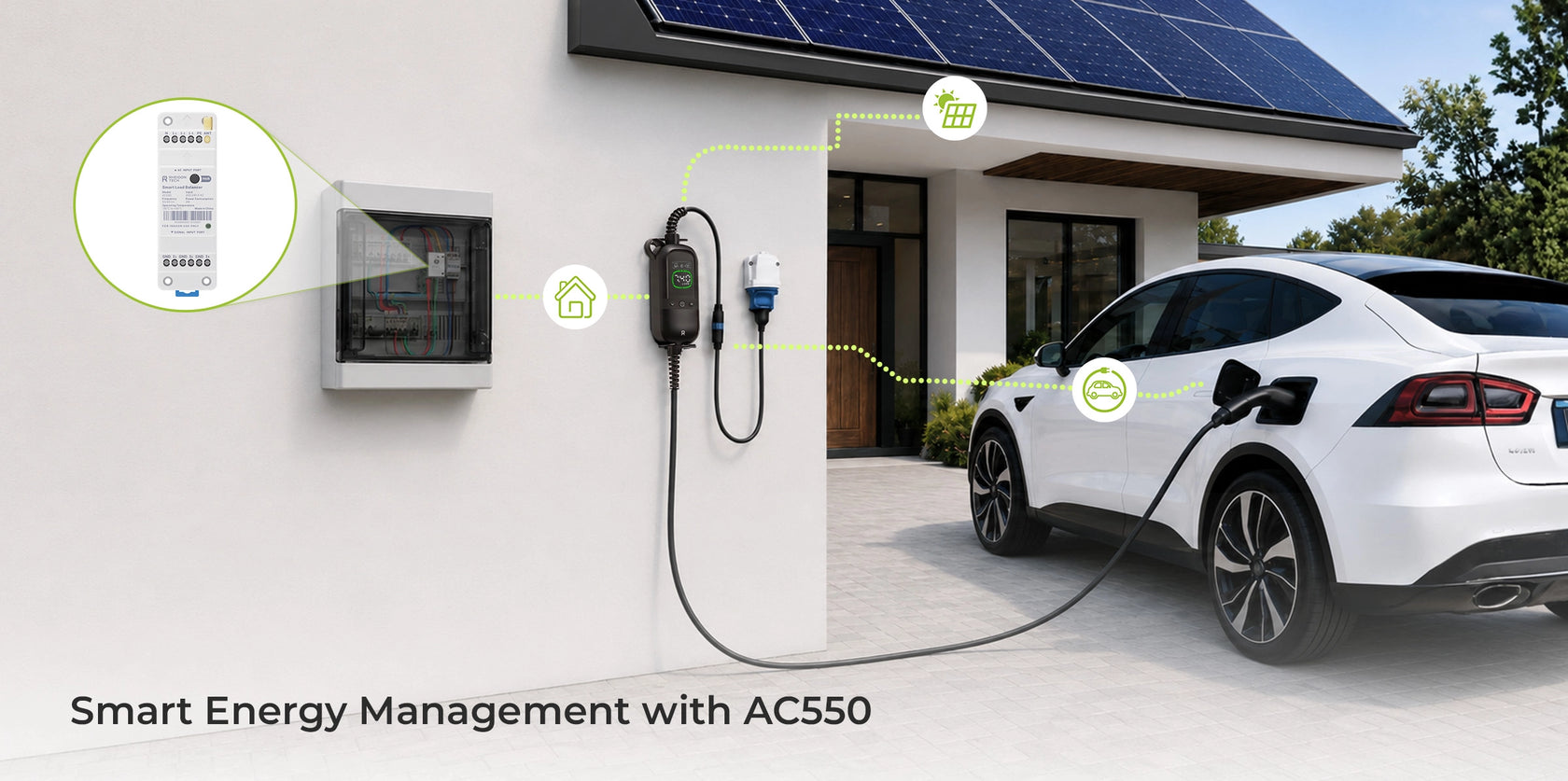

Yes. When paired with the Rheidon AC550 Smart Load Balancer, the PC200 Pro-7K4 can use surplus solar energy from your home PV system for EV charging. The AC550 intelligently adjusts charging based on available solar power, helping you make better use of self-generated energy.

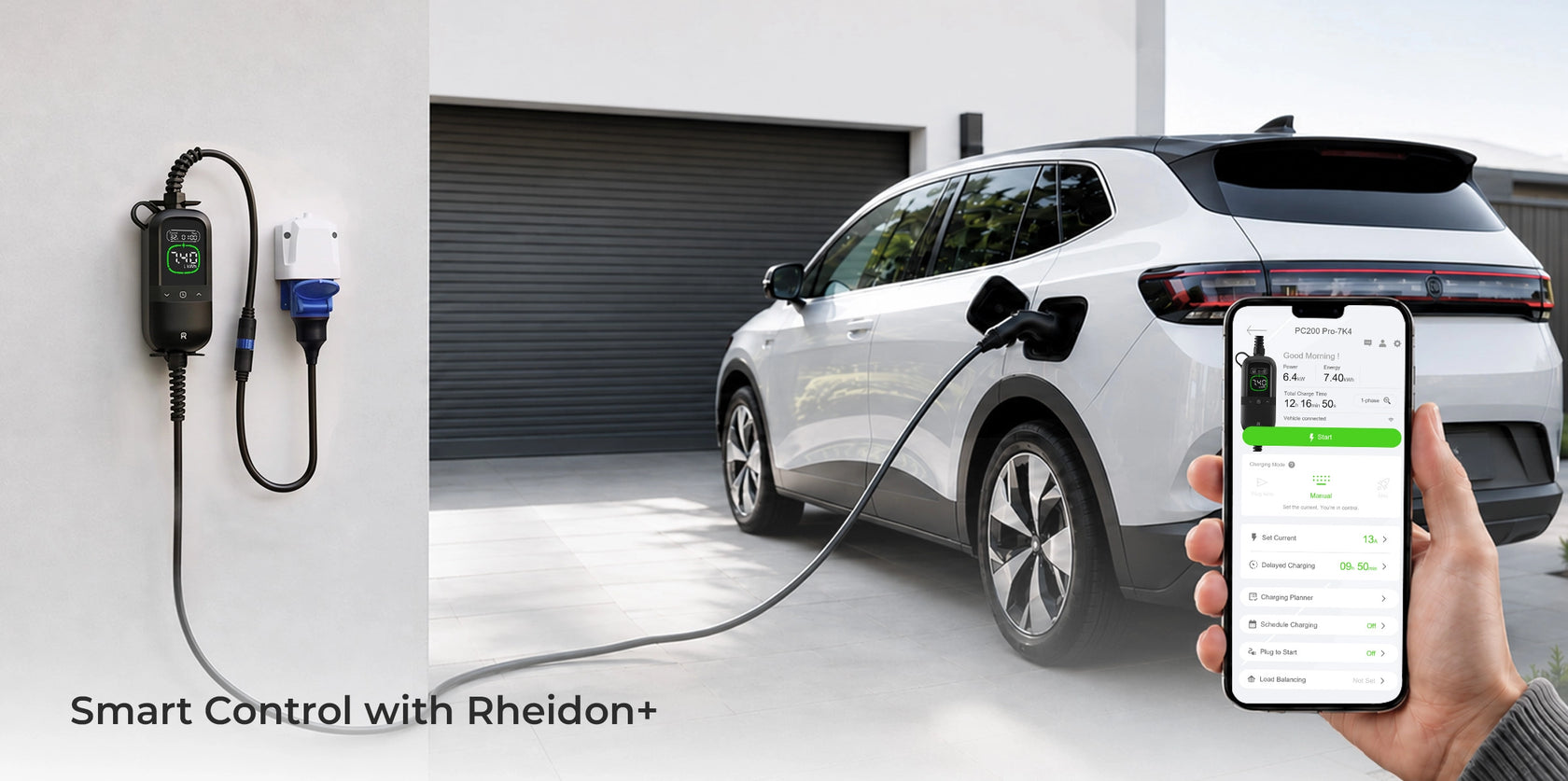

Yes. You can plug in and charge without the app, an account or Wi-Fi. The Rheidon+ app adds features such as remote control, scheduled charging and charging history.

CEE 32A 3-pin, 1-phase: up to 7.4 kW Schuko 16A: up to 3.6 kW
CEE Blue 16A: up to 3.6 kW
Type G 13A: up to 3.0 kW
Type J 10A: up to 2.3 kW
Type L 10A: up to 2.3 kW
Schuko 8A: up to 1.8 kW
Type 2: up to 7.4 kW (single-phase)

Charging time depends on your vehicle’s battery size, charging limit and available power. As a guide, a 60 kWh battery takes about 5 hours to charge from 20% to 80% at 7.4 kW, or around 10 hours at 3.6 kW.

The PC200 Pro-7K4 features built-in Type A + DC 6 mA residual current protection, along with protection against overheating, overcurrent, short circuits, overvoltage, undervoltage and grounding faults. It also performs a safety check before charging begins.

Yes. The Quick-Switch adapter system supports major European socket types, including Schuko, Type G, Type J, Type L and CEE. Simply choose the appropriate adapter for the socket available at your destination.
