Rheidon 7.2 kW EV WallBox

Rheidon 7.2 kW EV WallBox

  • 7.2kW Home Charging - Fully charge most EVs in just 5 – 10 hours.
  • True Plug & Play – Plug directly into your CEE 32A single-phase socket.
  • Compatible With Your EV - Type 2 plug ensures wide compatibility across Europe's leading EVs.
  • Intuitive Operations - Basic configurations with touchscreen or app.
  • Energy Management - Load balancing and PV surplus charging to optimize your energy usage.
  • Smarter With App - Remote control, schedule your charging, account authorization and more.
€589,00 EUR
€589,00 EUR
Sale Sold out
Taxes included.

The order will be shipped within 15–20 business days.

View Technical Specifications

If you have any questions about compatibility, installation, shipping, or anything else, you can contact us via the chatbot or by emailing support@rheidon.com we’re always here to help!

View full details

Installation Made Simple

No drilling required, no cable entry holes, just 5 mounting screws - minimal installation.

  • Ultra-thin profile - sleek integration with any architecture

    Doubles as a minimalist calendar and clock - functional elegance for your home

  • Premium Design That Fits Your Lifestyle

    Large, clear display for easy status monitoring

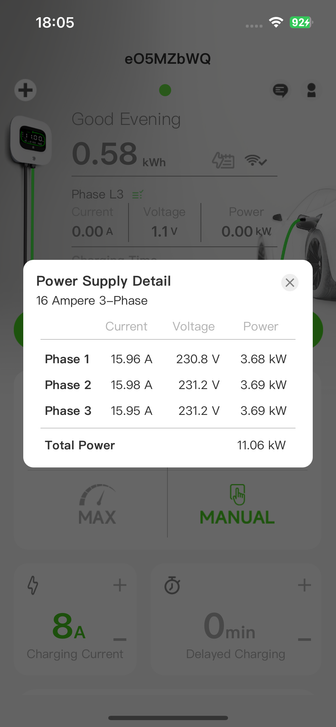

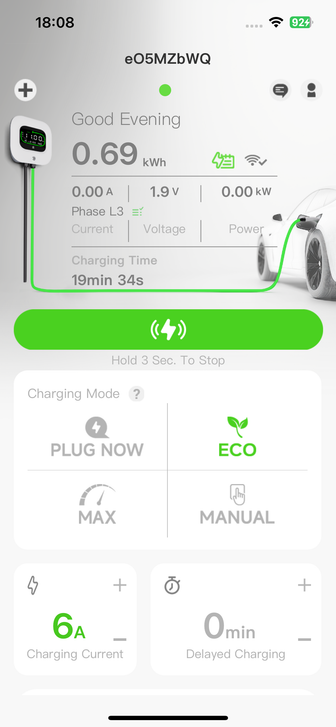

App Screenshot
App Screenshot
App Screenshot
  • Free Download
  • Simple, Effortless Operation
  • Easier, Smarter, Save More
  • PV Surplus Charging
  • Wi-Fi Connection
  • Monitor Charging Status
Download on the App Store Get it on Google Play

WB500-7K2 Specification

WB500-7K2 SPECIFICATION
Cable Color
Black
Charging Power (Max)
7.2kW
Input
230V / 6 - 32A
Power Plug
CEE32 230V 32A 1-phase
Weight
6.2kg
QUALITY
Screen
7 inches
Connector
Type 2
Keying
Touch Button
Charger Control Method
On-device / Remote via APP
Charging Access Method
RFID Authorization / Wi-Fi Enabled APP
Wi-Fi Module
802.11b/g/n 2,4GHz / frequency band 2412-2472Mhz
RFID Module
13.56 MHz
Operating Temperature
-30°C to +50°C
Charging Cable Length
6m ( 3 x 6mm²)
Input Cable Length
1.5m
Storage Temperature
-30°C to +60°C
Operating Humidity
5% to 95%
Charger Size
310 x 270 x 67mm
Altitude Limit
< 3000m
Housing
Strengthen PC
Status Display
5W (Max)
Standby Power
5W (all lights standby mode) to 18W (all lights fully loaded)
Function Support
AC300 : Flexi Torch / AC500 : Smart Load Balancer
SAFETY
Waterproof
IP65
Residual Current Device
Type A + DC 6 mA With Protective Conductor Monitoring
Standard
EN IEC 61851
EN IEC 61000-6-1:2019
EN IEC 61000-6-3:2021
EN IEC 62196, RoHS
Safety Protection
Leakage Protection
Grounding Protection
Over Current Protection
Anti-Thunder Protection
Over Temperature Protection
Plug Temperature Protection
Short Circuit Protection
Low Voltage Protection
High Voltage Protection
Stop Button
Anti-theft Wall-mounted Bracket
Warranty
2 Years
